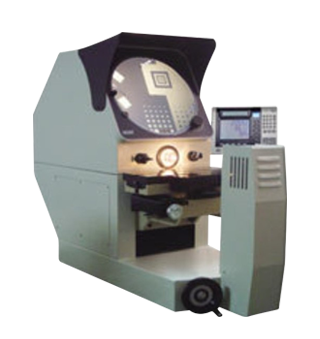

HB12 Optical Horizontal Profile Projector
Model Number ：HB12 Work table: 408x126mm work size x y z: 200x75x100mm Instrument measurement precision (UM): < or =(3+L/200) X.Z resolution: 0.0005mm Projector screen size (mm): Dia330 Projection rotation range: 0-360 Rotation Angle resolution: 1 or 0.01 Objective lens: 10x .20x.50x.100x Object field : Dia30 Dia15. Dia6 .Dia3 Focal distance of objective: 77. 44. 39. 25 Instrument illumination: 24V/150W halogen lamp Power Supply： 110v/220v (AC),50/60HZ, 400W Instrument size (L*W*H): 1147X556X964mm
HB16 Horizontal Profile Projector
Model number: HB16 400mm diameter screen with digital protractor; 300x150mm precision movement work-stage, 300x200mm optional; Work-stage sway range between 15°; Halogen profile and fiber surface illumination adjustable; Geometric multifunction data processing system DRO DP300; Built-in Mini-printer; Available 10x,20x,50x, objective rotary table and foot-switch, etc.

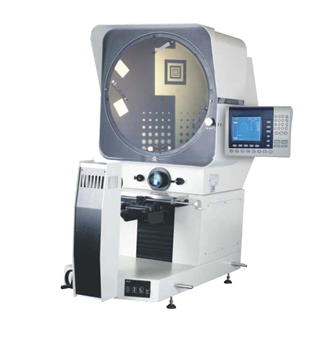

HB24 Horizontal Profile Projector
Reverse Image: HB24 Obverse Image: HB24Z Metal Stage Size: 455 x 126mm Stage Travel: X and Y-axis: 300 x 150mm Stage Travel:Y-axis : 75mm (for focusing) X and Z Linear Resolution : 0.0005 mm Sway Range: ±15° Accuracy: ≤3+L/200(um) Screen: Diameter :?625mm,Effective Range ≥ ?600(with “* ” Reticle) Rotary Range: 0~360° ; Resolution Rotary Indicator: 1’ or 0.01° Digital Readout: DP 300 (561-301) Multifunctional Data Processing System Illumination: Contour illumination:24v/150w (halogen Lamp ) Surface illumination:21v/150w (Optical Fiber) Power Supply: AC110V/60Hz; 220V/50Hz, 650W Dimension (D×W×H): 1620 x750 x 1400mm Packing Dimension (L×W×H) : 1790 x 890 x 1520mm 1300 x 880 x 1250mm : 300/250Kg
JT3015 Optical Vertical Profile Projector
Model Number ：JT-3015 Work table: 340x152mm work size x y z: 150x50x100mm Instrument measurement precision (UM): < or =(3+L/200) X.Z resolution: 0.0005mm Projector screen size (mm): Dia312 Projection rotation range: 0-360 Rotation Angle resolution: 1 or 0.01 Objective lens: 10x .20x.50x.100x Object field : Dia30 Dia15. Dia6 .Dia3 Focal distance of objective: 77. 44. 39. 25 Instrument illumination: 24V/150W halogen lamp Power Supply： 110v/220v (AC),50/60HZ, 400W Instrument size (L*W*H): 770X550X1120mm

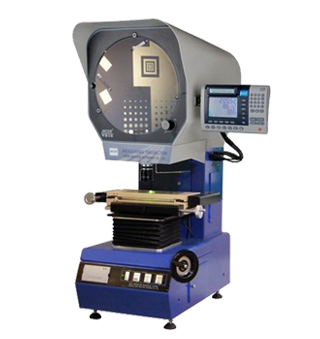

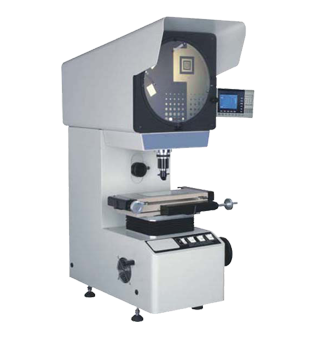

VB12 Optical Vertical Profile Projector
Reverse Image：VB12-1550 ，VB12-2010 Obverse Image：VB12-1550Z，VB12-2010Z Metal Stage Size：340x152 mm ，350x170 mm Glass Stage Size：196x96 mm ，246x120 mm Stage Travel: X and Y-axis：150x50 mm ，200 x 100 mm Stage Travel: Z-axis：100mm (for focusing) Accuracy：≤3+L/200(um) Resolution of X and Y-scale 0.0005 mm Screen Diameter :?330mm,Effective Range ≥ ?300(with “* ” Reticle) Rotary Range: 0~360° ; Resolution Rotary Indicator: 1’ or 0.01° Digital Readout DP 300Multifunctional Data Processing System/RS232 Illumination ：24v/150w halogen lamp (adjustable) Cooling System Forced Cooling (3-axis-fans) Power Supply AC110V/60Hz; 220V/50Hz, 400W Dimension (D×W×H) 785x 575 x 1136mm Packing Dimension (L×W×H) 1540 x 790 x 1500mm Gross/Net Weight 260/220Kg
VB16 Optical Vertical Profile Projector
Reverse Image：VB16-2010 Obverse Image：VB16-2010Z Metal Stage Size：350 x 170mm Glass Stage Size：246 x 120mm Stage Travel: X and Y-axis：200 x 100mm Stage Travel: Z-axis：100mm (for focusing) Accuracy：≤3+L/200(um) Resolution of X and Y-scale 0.0005 mm Screen Diameter :?425mm,Effective Range ≥ ?400(with “* ” Reticle) Diameter :?425mm,Effective Range ≥ ?400(with “* ” Reticle) Digital Readout DP 300 Multifunctional Data Processing System Illumination ：24v/150w halogen lamp (adjustable) Cooling System Forced Cooling (3-axis-fans) Power Supply AC110V/60Hz; 220V/50Hz, 650W Dimension (D×W×H) 760 x 530 x 1100mm Packing Dimension (L×W×H) 1540 x 790 x 1500mm Gross/Net Weight 260/220Kg
QVS4030CNC
Model Number ：QVS4030CNC Optical system: Automatic zoom lens Power: Electronic 220V/110V 50HZ Usage: Three Coordinate Measuring Machine Measuring body size: 1540x1066x1750mm work size: 400x300x200mm operating platform max load weight: 35kg xy axis Accuracy: <(3+L/200)UM Grating ruler: America brand High precision GSI. 0.5um CCD: SONY colorfulCCD

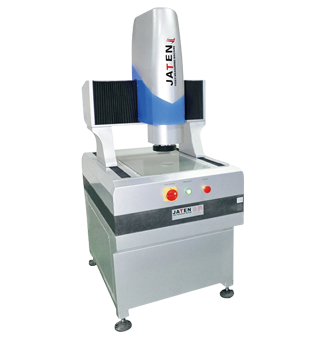

MV7070 CNC imaging measuring machine
Brand Name: JATEN Model Number: MV7070CNC, MV7070CNC Optical system: Automatic zoom lens Power: Electronic 220V/110V 50HZ Resolution: 0.5 Measuring body size: 1750x1510x1700mm Measuring Range: X700*Y700*Z200mm operating platform max load weight: 300kg xy axis Accuracy(Eum,L:mm): 3+L/200 UM ISO 10360-2 maximum permissible error Grating ruler: America brand High precision GSI. 0.5um CCD: SONY colorfulCCD
.png)
JT 654 Coordinate measuring machiner
Brand Name: JATEN Model Number: JT 654, JT 654 Optical system: Automatic zoom lens Power: Electronic 220V/110V 50HZ Resolution: 0.5 Measuring body size: 950x1050x2000mm Measuring Range: X500*Y600*Z400mm operating platform max load weight: 300kg xy axis Accuracy(Eum,L:mm): 3.5+L/250 UM ISO 10360-2 maximum permissible error Grating ruler: America brand High precision GSI. 0.5um
We have the most scientific and reasonable structure design.
Jaten has been established for 10 years.
and through many years development.We have the most scientific and reasonable structure design.
We have a group of prominent experts and researchers.Most of them have bachelor's degrees.Never stop innovation.
We achieve a major breakthrough in the semiconductor industry and we have professional research and much manufacturing experience of optical instrument.
Quality
The company is committed to improving product quality and develope new products.
In the production department,our professional quality inspector will strictly monitor every assembly link, and normally, each machine also must be carefully tested 48 hours before delivery to ensure good operating performance.
Professional packaging: 1pc with tin foil.wooden case make sure the machine safe.
Operation training
We have our own operating instruction manual and operation video demonstration to offer guidance and directions for customers, for the guarantee of appropriate installation, operation and maintenance.
Sales service
Every salesman will receive the company's internal training on the professional knowledge of machine, So they can help you complete all puzzles.For after-sale, We have professional engineer to help you solve any techinical problems.
Life-long maintenance service for the product.
Patent certificate
Invention patent certificate Design patent certificate Utility model patent certificate Cultivation Certificates Year of Science and Technology Progress Award certificates High-tech Enterprise Certificate

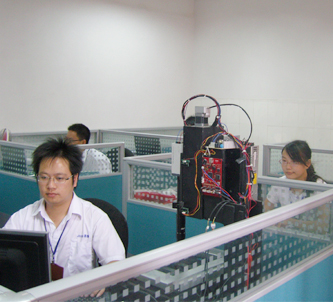

Office

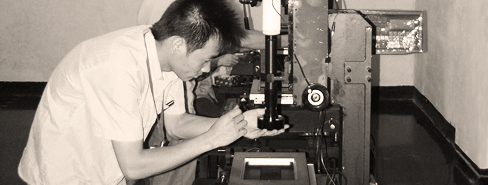

Operation
Precision workshop
Employee dormitory

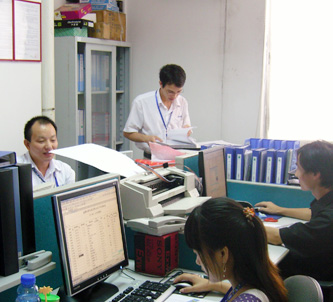

Design Department

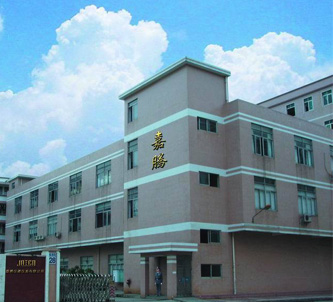

Location

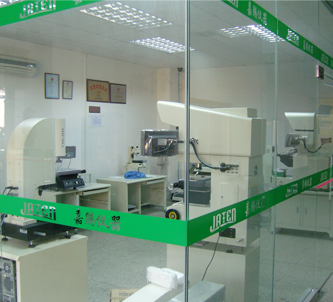

Workshop Hall
Dongguan Jaten Instrument Co.,LTD(HK:JATEN TECHNOLOGY CO.,LIMITED)
Address: 28 Songlang Street.Shangqiao Industrial Road.Dongchen District.Dongguan.Guangdong.China
Contact: Wendy Zhou Email:jt@cnjaten.cn mobile:0086 13620000930 Tel: 008676923325800 Fax:008676922669346
alibaba: https://jaten.en.alibaba.com
google: http://www.jatentech.com
